Flex-PLI GTR Final Report
Design and performance specification for the WorldSID 50th percentile male side impact dummy-Part 5:Dummy design updated
ISO 15830 WSID 50th Part 1,2,3,4, Second edition has been issued by ISO TC 22/SC 36/WG 5 in May 2013. They has newly updated after three years as part 5 in Feb. 2016.
Please refer the details in the attached technical information. The segment weight has been reviewed and changed. The functions are also changed as moving area of both Arms and Ankles. And the Pelvis inner shape has been changed as Updated specifications.
JTC-240401 Nodding Block
- Hardness requirement on the drawing: Durometer range from 80 to 90.

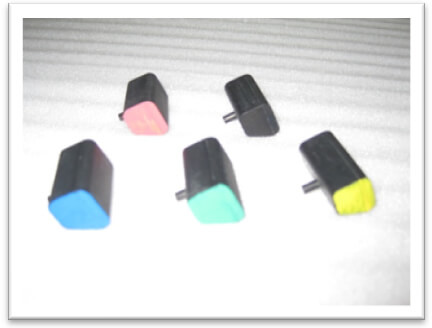

JASTI Nodding Blocks: Durometer hardness of 80, 82, 85, 87, 90 (5 models) are available

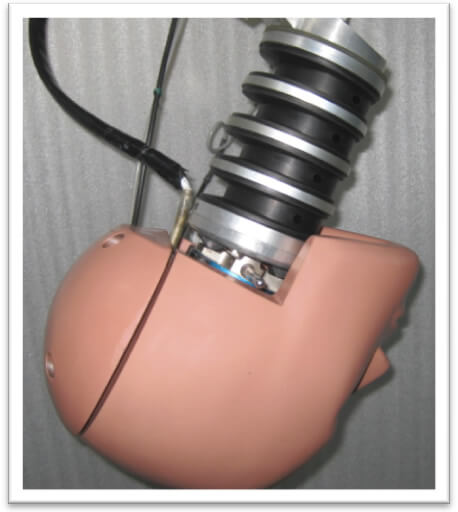

- Maximum Rotation angle, moment, and time that required for neck test are adjustable.
- The test can be done more efficiently by adjusting the duromenter hardness of nodding block when necessary.

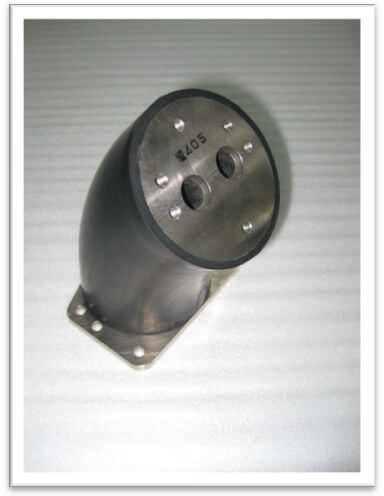

JTC-240402 Rubber Parts

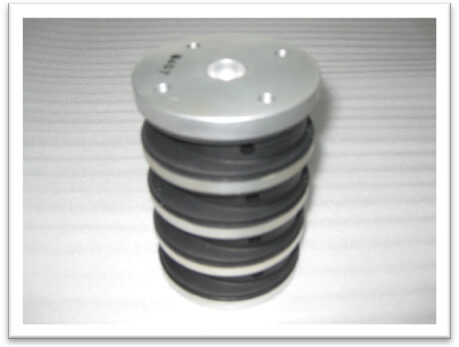

JTC-240403 Lumbar Spine
- Hardness requirement on the drawing: Durometer range from 75 to 85 (Hybrid-III 50th)
JTC-240403 Lumbar Spine Hardness requirement on the drawing: Durometer range from 75 to 85 (Hybrid-III 50th) JASTI lumbar spine: Durometer range from 80 +/- 1 (Under our quality control)

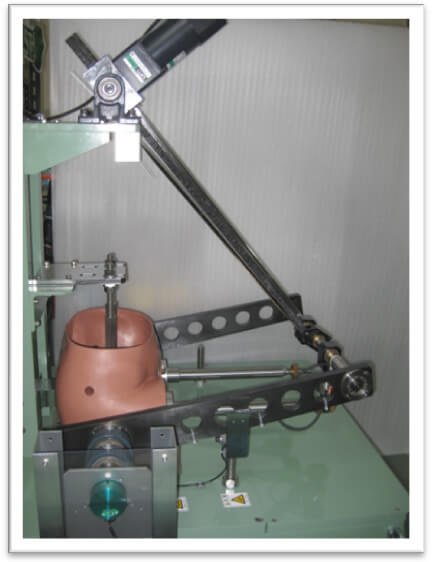

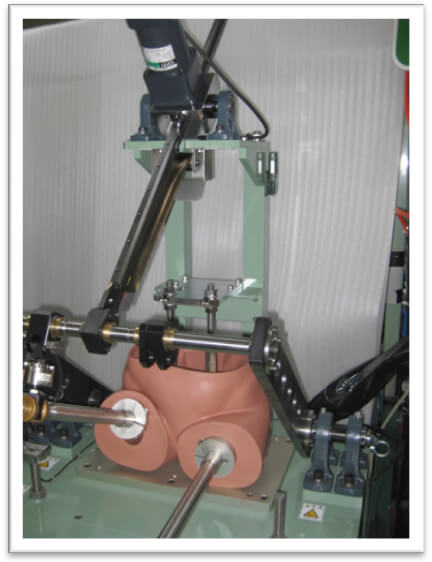

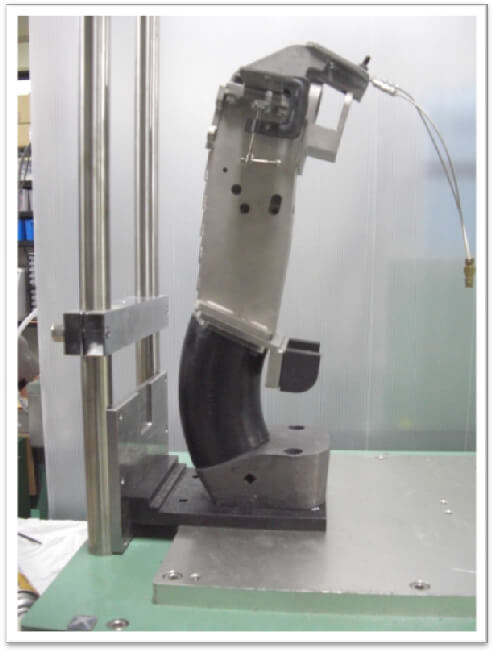

The hardness of lumbar spine is an important factor which affects the movement of the upper part of dummy and the impact value on ribs. For the reason, we have been testing lumbar spine (for Hybrid-III 50th, Hybrid-III 5F, 6-year-old, 3-year-old dummies…etc) on a Torso bending test equipment to observe and record the bending characteristics of upper torso.
As the lumbar spine of Hybrid-III 50th is in a curve shape, it is necessary for controlling the hardness of the rubber in that we control the performances.
Through closely control of skin and fillers ratio during production, we provide and ensure quality of Hip Joint that meets the requirements of characteristics tests. Through our long experiences in researches and their results, we are able to provide Hip Joints that meet each customer’s specific requirements.
