FR-2(Federal Register / Vol.77, No. 38/Monday, February 27, 2012)

  • Docket Number:NHTSA-2011-0175
  • ACTION: Final Rule (FR).
SUMMARY

This final rule establishes regulations setting forth specifications and qualification requirements for a Hybrid III 10-year-old size child test dummy (HIII–10C). In a companion document published elsewhere in this issue of the Federal Register, NHTSA is adopting use of the dummy to test child restraints recommended for children weighing more than 65 pounds (lb) for compliance with the Federal motor vehicle safety standard for child restraint systems. The HIII–10C dummy enables NHTSA to assess the performance of child restraint systems in restraining children in the 8- to 12-year-old age range.

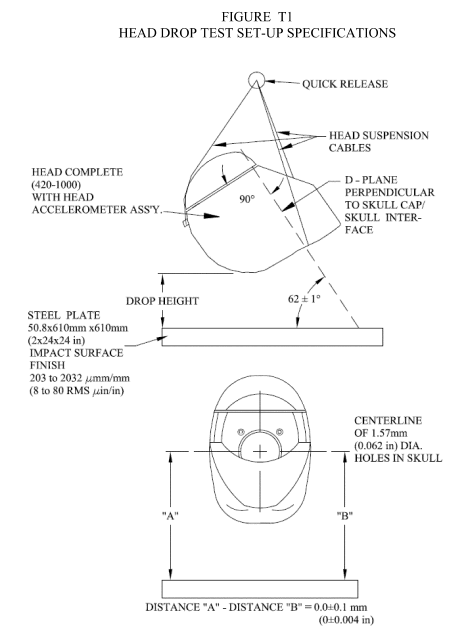

  • HEAD DROP TEST SET-UP SPECIFICATIONS

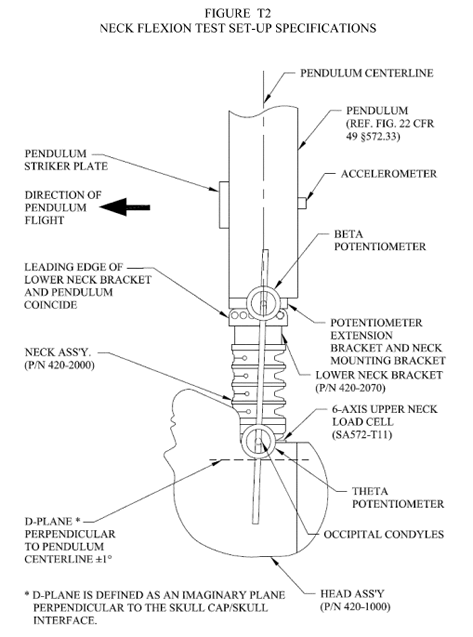

  • NECK FLEXION TEST SET-UP SPECIFICATIONS

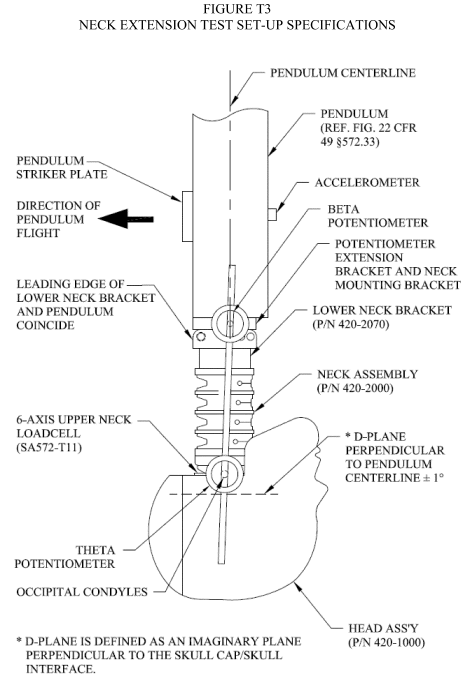

  • NECK EXTENSION TEST SET-UP SPECIFICATIONS

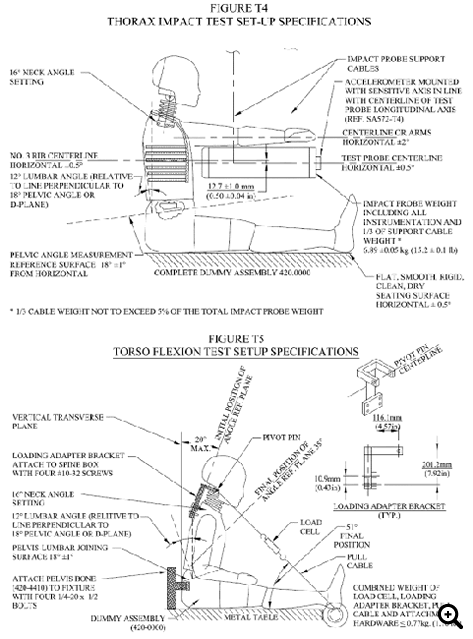

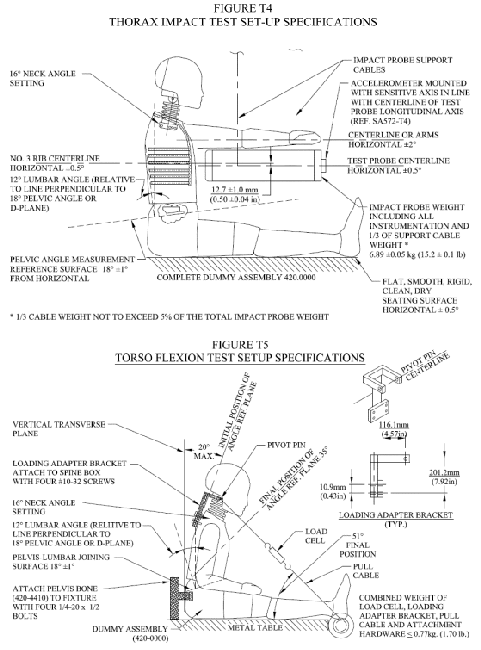

  • THORAX IMPACT TEST SET-UP SPECIFICATIONS / TORSO FLEXION TEST SET-UP SPECIFICATIONS

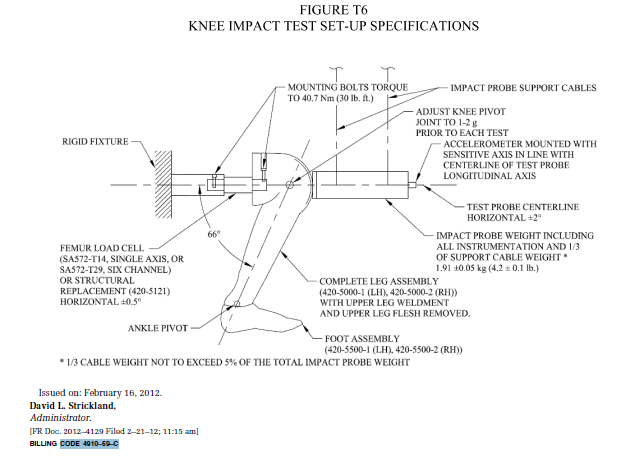

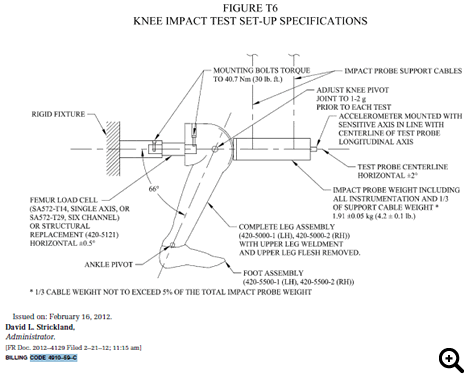

  • KNEE IMPACT TEST SET-UP SPECIFICATIONS
